2002 FORD Super Duty Pickup Serpentine Belt Diagram for V8 7.3 Liter Engine Diesel

Serpentine Belt Diagram for 2002 FORD Super Duty Pickup

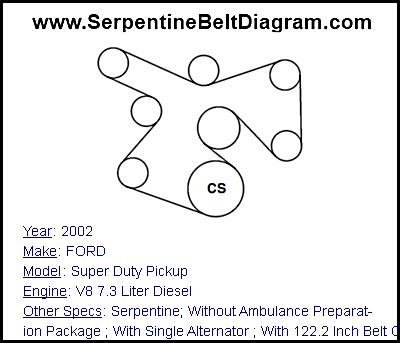

This FORD Super Duty Pickup belt diagram is for model year 2002 with V8 7.3 Liter Diesel engine and Serpentine; Without Ambulance Preparation Package ; With Single Alternator ; With 122.2 Inch Belt Outside Circumference2002 FORD Super Duty Pickup with V8 7.3 Liter Diesel Engine
