2002 INFINITI Q45 Serpentine Belt Diagram for V8 4.5 Liter Engine

Serpentine Belt Diagram for 2002 INFINITI Q45

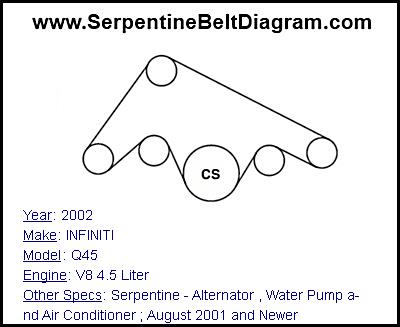

This INFINITI Q45 belt diagram is for model year 2002 with V8 4.5 Liter engine and Serpentine – Alternator , Water Pump and Air Conditioner ; August 2001 and Newer2002 INFINITI Q45 with V8 4.5 Liter Engine
