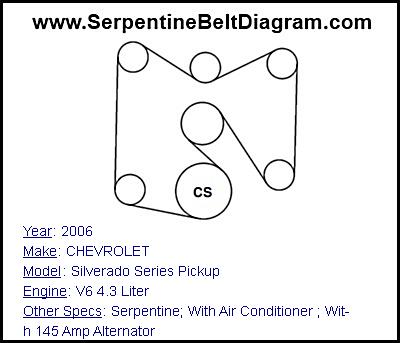

2006 CHEVROLET Silverado Series Pickup Serpentine Belt Diagram for V6 4.3 Liter Engine

Serpentine Belt Diagram for 2006 CHEVROLET Silverado Series Pickup

This CHEVROLET Silverado Series Pickup belt diagram is for model year 2006 with V6 4.3 Liter engine and Serpentine; With Air Conditioner ; With 145 Amp Alternator2006 CHEVROLET Silverado Series Pickup with V6 4.3 Liter Engine
