2007 MAZDA CX-9 Serpentine Belt Diagram for V6 3.5 Liter Engine

Serpentine Belt Diagram for 2007 MAZDA CX-9

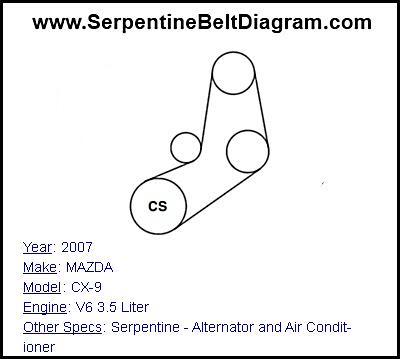

This MAZDA CX-9 belt diagram is for model year 2007 with V6 3.5 Liter engine and Serpentine – Alternator and Air Conditioner2007 MAZDA CX-9 with V6 3.5 Liter Engine
