2009 FORD Ranger Serpentine Belt Diagram for 4 Cylinder 2.3 Liter Engine

Serpentine Belt Diagram for 2009 FORD Ranger

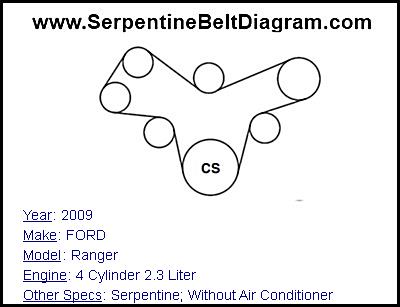

This FORD Ranger belt diagram is for model year 2009 with 4 Cylinder 2.3 Liter engine and Serpentine; Without Air Conditioner2009 FORD Ranger with 4 Cylinder 2.3 Liter Engine
