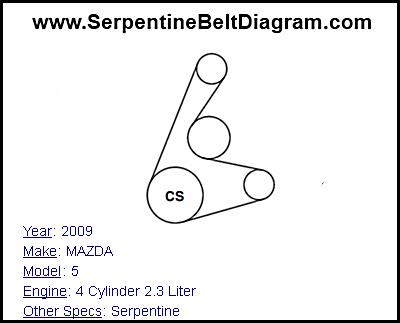

2009 MAZDA 5 Serpentine Belt Diagram for 4 Cylinder 2.3 Liter Engine

Serpentine Belt Diagram for 2009 MAZDA 5

This MAZDA 5 belt diagram is for model year 2009 with 4 Cylinder 2.3 Liter engine and Serpentine2009 MAZDA 5 with 4 Cylinder 2.3 Liter Engine
